Developer: Imran Pinjara
App Size: 60.38 MB
Release Date: 2019-10-24
Price: $2.99
6 Ratings
60.38 MB
Download on the App Store

Screenshots for App

More Screenshots for iPad
This app is build to Generate Flat Pattern Layout Marking of Miter Bend, Segment Bend, Cut Bend Fabricated Bend used in fabrication, Piping, Ducting and Insulation Field. This app is very useful for all working professionals in the Field of Fabrication of Piping, Ducting and Aluminium Insulation.

In this app all Dimensions are used in MM to Calculate Marking so please enter your Input Dimensions in MM to get correct solution or correct layout of Miter Bend.

This app is designed in three options for 12 Nos, 24 Nos and 36 Nos, 48 Nos, 72 Nos and 96 Nos of equal Divisions of Plate or Pipe.

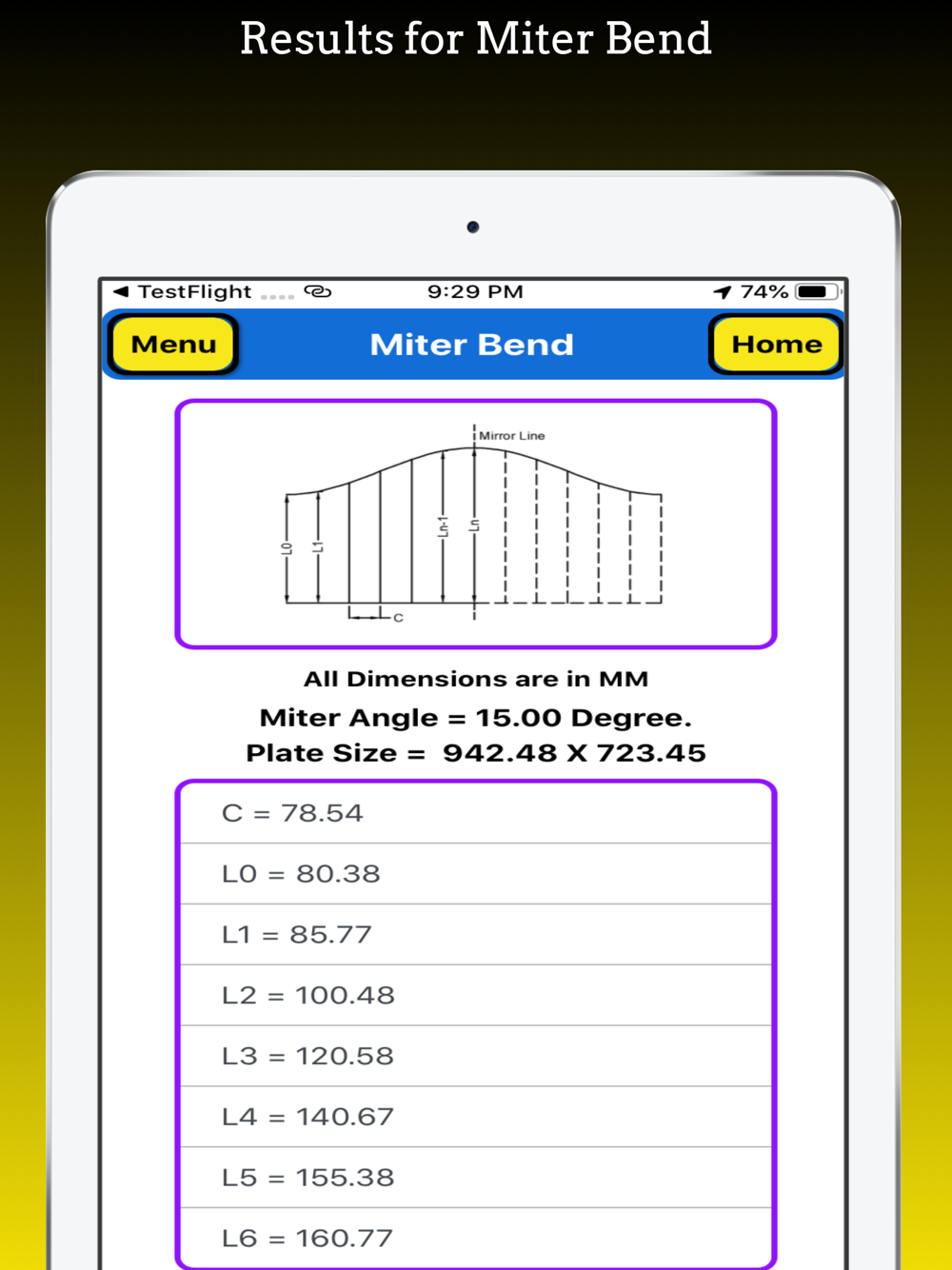

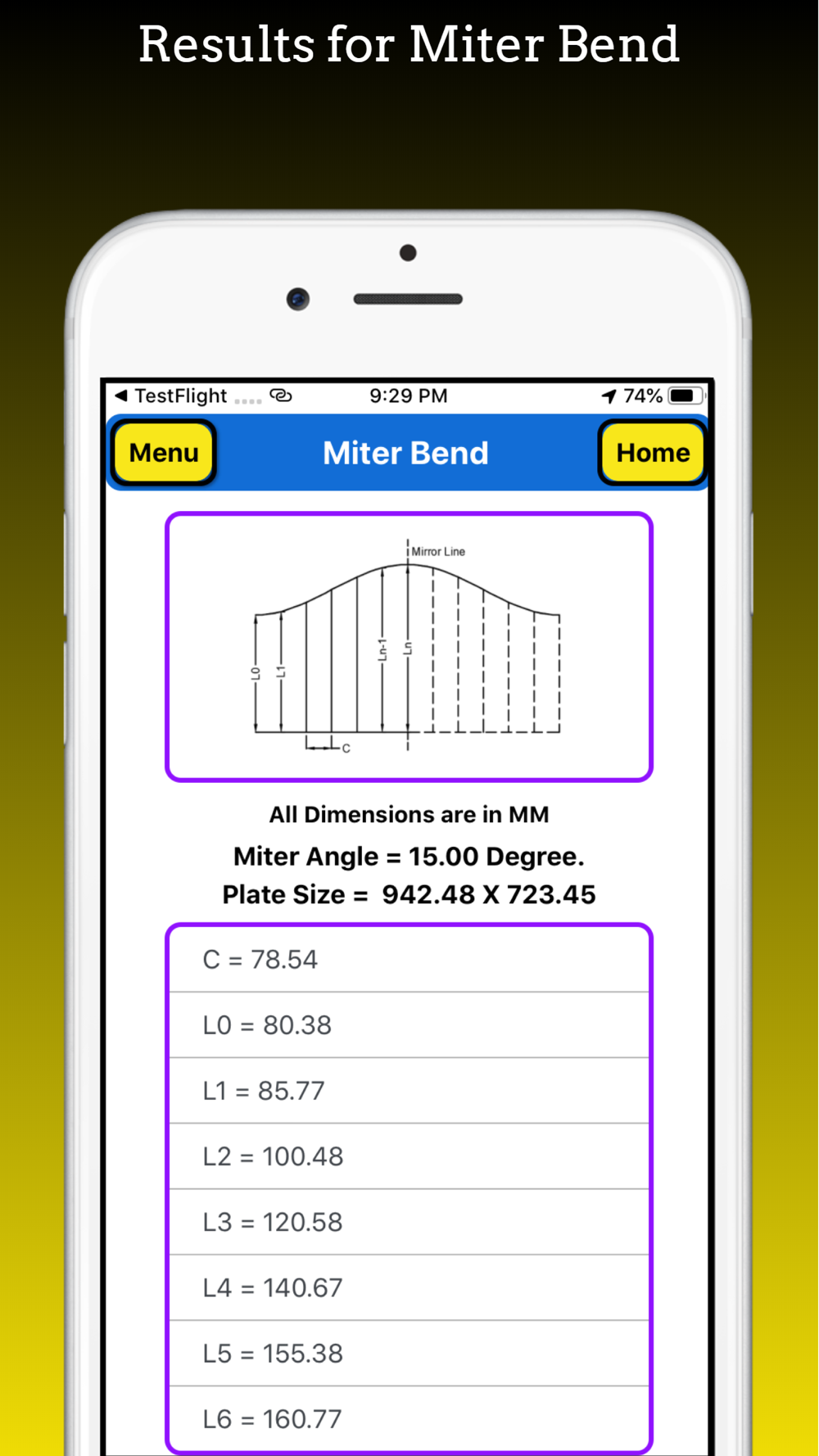

In this App Miter Angle is Calculated and also Displayed on Result Screen.

Required Cutting Plate Size is also calculated in this app so that you can plan for raw materials accordingly.

We had Make arrangement for Displaying Layout of Both End parts that is First and Last Part and Middle Part is shown for Better Under Standing and better marking.

This app is very useful for those who are working in fabrication of Pipelines, HVAC Ducting and Aluminium Insulation Industry.

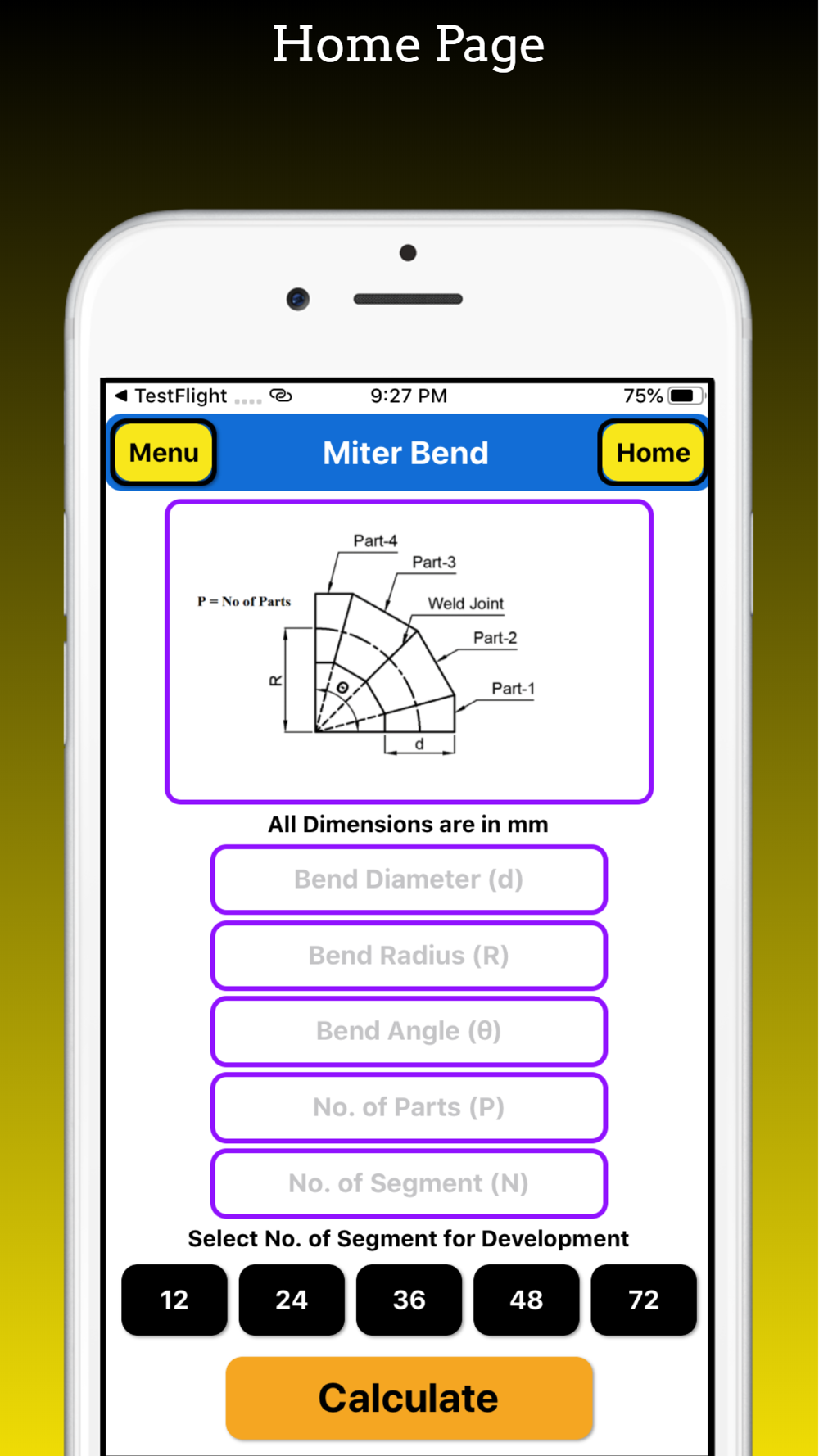

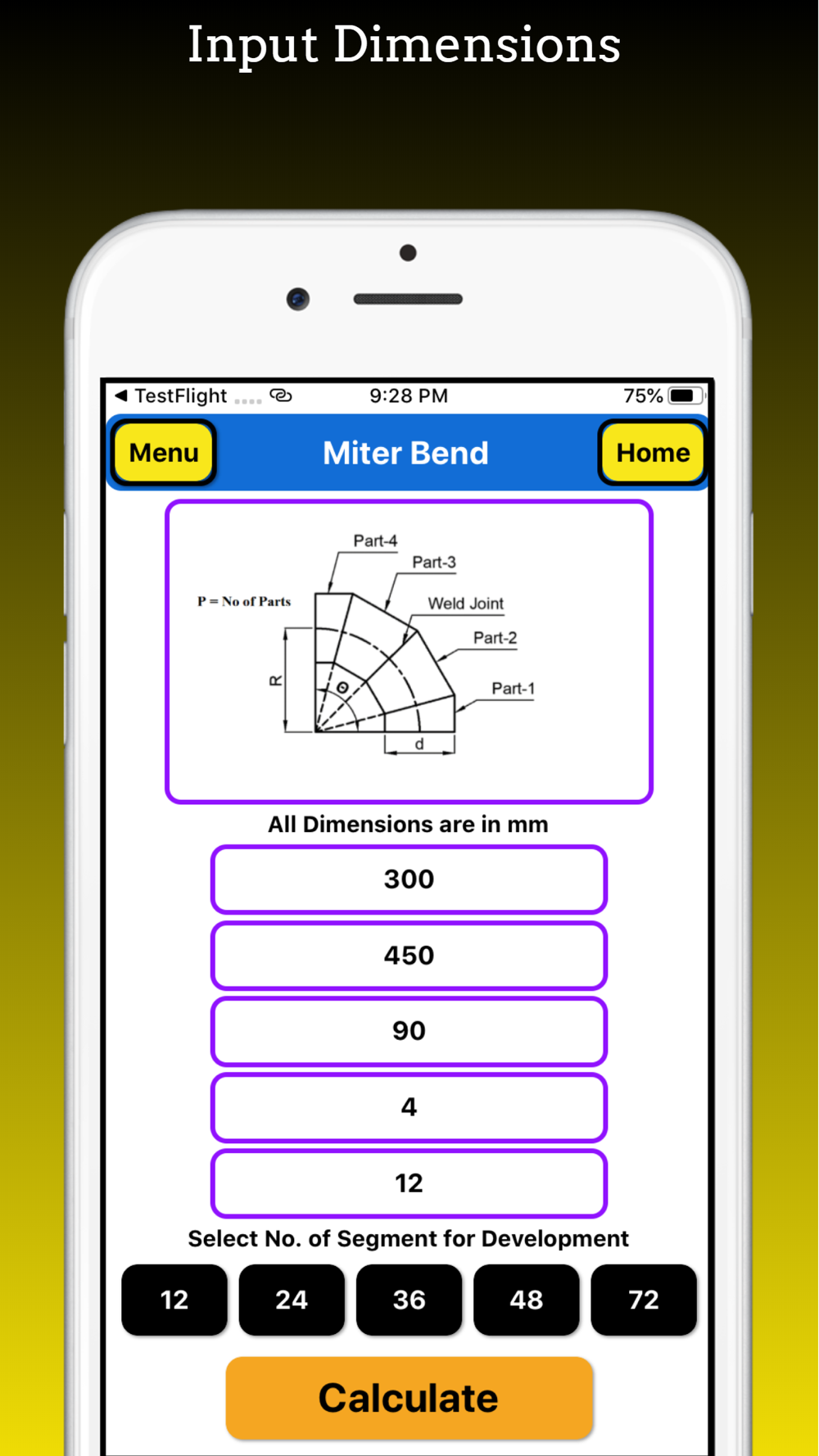

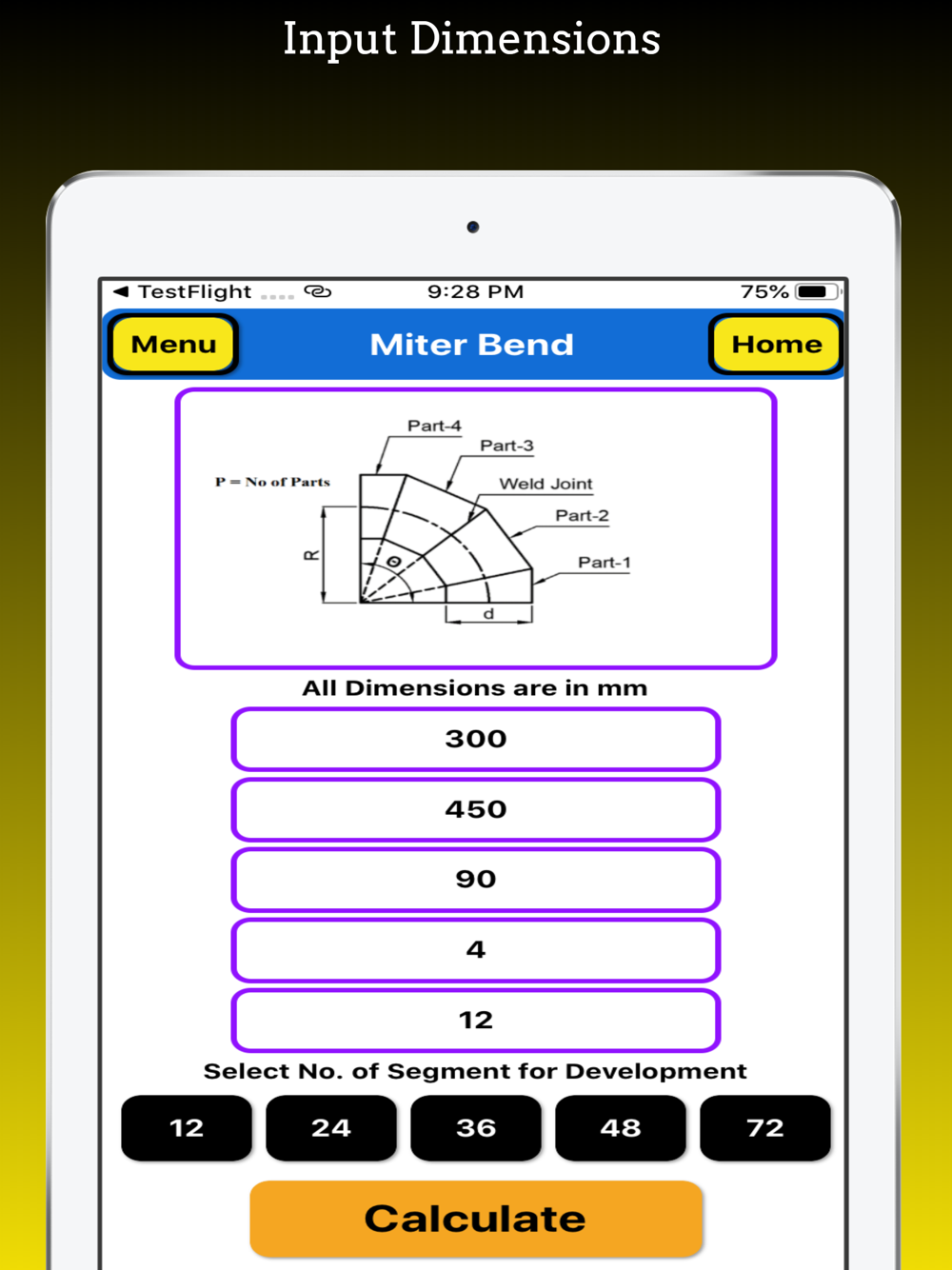

In this App you can generate layout as per your requirement by giving input as Diameter, Bend Radius, Bend Parts, and Angle of Turn. if you want layout marking on Flat Plat then put Input diameter as mean diameter or if you want to layout marking directly Pipe then put input Diameter as Outer Diameter for more Accuracy.

You Can Select Lay-outing Options of 12 Lines, 24 Lines, 36 Lines, 48 Nos, 72 Nos and 96 Nos as per your Required Accuracy.

please note that Cutting allowance are not included in this app so please add your cutting allowance as per your Requirement.

it is best Suitable for Cut Bends, Segment Bends, fabricated Bend, Miter Bend, layout marking, layout Development, raw plate Size for miter bend, fabrication , process equipment etc.
Show More
Show Less
More Information about: Miter Bend Pro
Price: $2.99
Version: 1.0
Compatibility: Requires 10.0 or later
Bundle Id: com.letsfab.miterbendpro
Size: 60.38 MB
Release Date: 2019-10-24
Last Update: 2023-04-25
Content Rating: 4+
Developer: Imran Pinjara
Language: EN -
