Single-line diagrams

About: Single-line diagrams

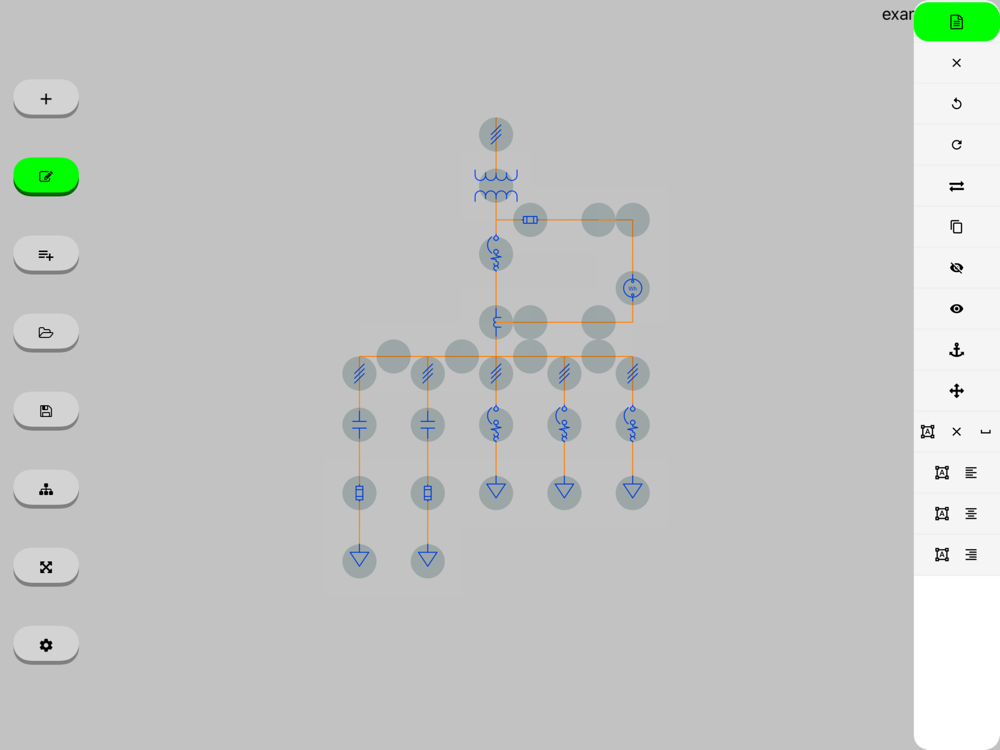

This tool will allow you to create your own one-line diagrams quickly and easily. Simply select the symbol you want to use and drag it to the desired position.

The most commonly used symbols are integrated (IEC, ANSI standards):

- Circuit breakers
- Fuses
- Differentials
- Contacts
- Engines
- Generators
- Electrical outlets
- Lamps
- Grounding
- Active and reactive energy meter
- Current and voltage transformers

...and much more

* Missing a symbol? Contact us through the app
* More examples: https://drive.google.com/drive/folders/15vTwFvjtu311lSEbYJLaqUfp_pyEwEDt?usp=sharing
